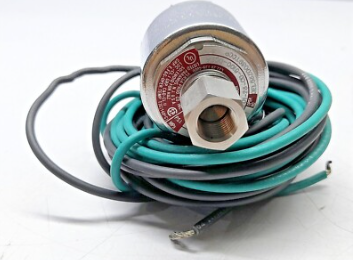

The Versa E5SM-3201-23-CD-5100-D024 Solenoid Valve is a rugged, high-performance directional control valve designed for reliable operation in industrial and hazardous environments. Featuring a 5-way, 2-position configuration, this valve offers precise pneumatic control for actuators and process systems. With its 24V DC solenoid, corrosion-resistant construction, and modular design, it provides exceptional durability and performance in demanding applications such as oil & gas, petrochemical, and power generation systems.
|
Product Series |
E5SM |
E-Series Compact Direct-Operated Valve |
|
Left End Actuator |
3 |
Three-Way |
|
Right End Actuator |
2 |
1/8" NPT |
|
Functional Type |
7 |
Sideported |
|
Body Size |
1 |
Two Position Normally Closed |
|
Body Details |
2 |
1/32" (0.8mm) Minimum Orifice Between Ports NC and COM |
|
Spool Details |
3 |
3/64" (1.2mm) Minimum Orifice Between Ports COM and NO |
|
Suffix option |
-CD |
72" Coil Wire Lead Length |
|
Suffix Option |
-5100 |
1/8" NPT Exhaust Adapter, Low Watt (1.8W) Potted Coil, Stainless Steel NEMA 4/4X, 7 & 9 Housing, Hazardous Location Solenoid, NEMA 7 & 9, 1/2" Conduit Connection |
|
Suffix Option |
-D024 |
24 VDC |
