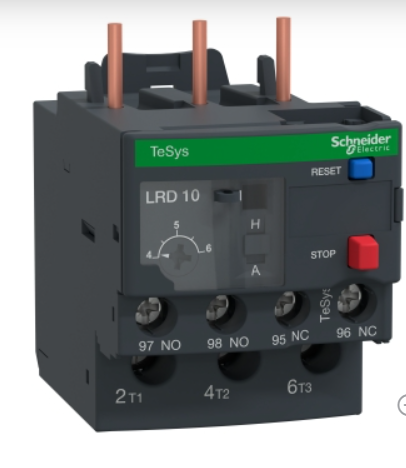

LRD10 Product picture LRD10 Product picture LRD10 Product picture LRD10 Product picture 1 videos Thermal overload relay, TeSys LR.D, TeSys Deca, 690VAC, 3P, 4 to 6A, 1NO+1NC, class 10A, screw clamp
TeSys N Starters are available in NEMA Sizes 00-7 for non-reversing applications
TeSys N Starters are available in NEMA Sizes 00-5 for reversing applications
Combining NEMA robustness and IEC compactness
TeSys N Starters conform to NEMA ICS2 standards and offer high reliability with long mechanical and electrical life
These NEMA starters use as accessories in the TeSys family of NEMA and IEC products for simplicity and reduced inventory
TeSys LRD thermal overload relay, 6A/690V, thermal setting range 4-6A, tripping class 10A, for protection of 3-phase motors 2.2kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
