CAMGT 4V-300

CamGT 4V-300

To meet increasing demands for performance, Camfil has developed the CamGT 4V-300 turbine air intake filters. The result is a high-performing static filter that extends turbine life, decreases maintenance, and reduces carbon footprint with EPA filters. It is suitable for all installations where safety/reliability is important, including corrosive/humid/wet conditions.

Features

  • Static air filter with long filter life and lower initial and stable pressure drop
  • Lightweight construction for easy mounting
  • Fully incinerable
  • High availability and reliability
  • Better fuel efficiency leads to lower CO2 emissions per MWh, when using EPA grades

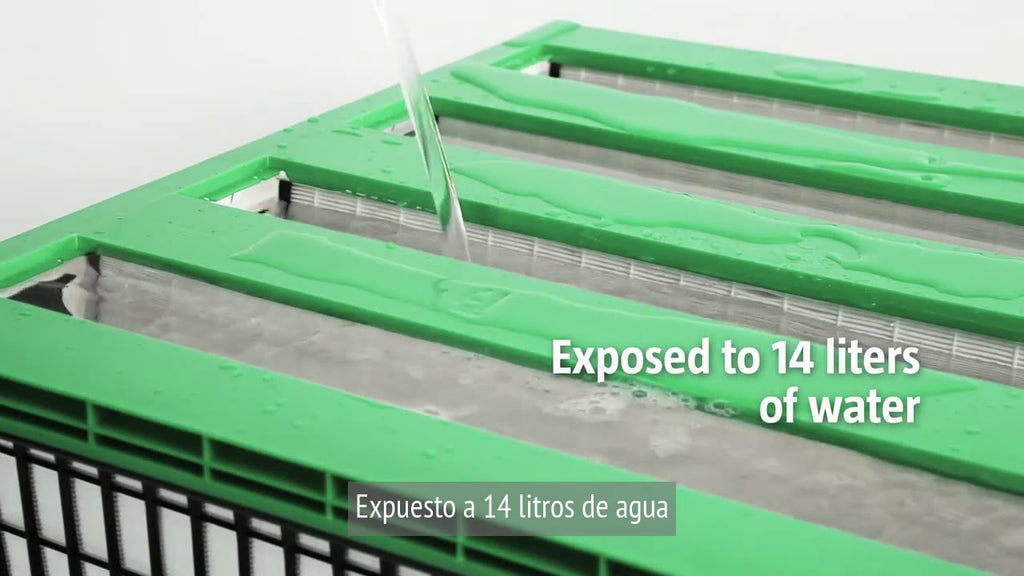

  • Hydrophobic EPA grades limit degradation such as fouling and corrosion
  • Suitable for harsh environments

Specifications

Application All installations where safety/reliability/long life is important, especially areas with high humidity/heavy rain
Pre- or final filter for gas turbines, large industrial air compressors, diesel & gas engines, generators & enclosures, wind turbines
Filter Frame Plastic moulded, ABS
Media Glass fiber
Max temperature (°C) 70°C
Relative Humidity 100%
Recommended final pressure drop 600 Pa
Separator Hot melt
Gasket Polyurethane, endless foamed
Grille, Downstream Support grid for filtermedia
Sealant Polyurethane
Installation options In a separate bank, from the upstream or downstream sides.
Can be close-coupled in a reverse-flow configuration
Max Airflow 1,3 x nominal flow
