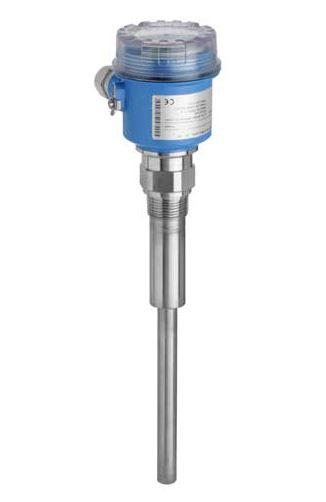

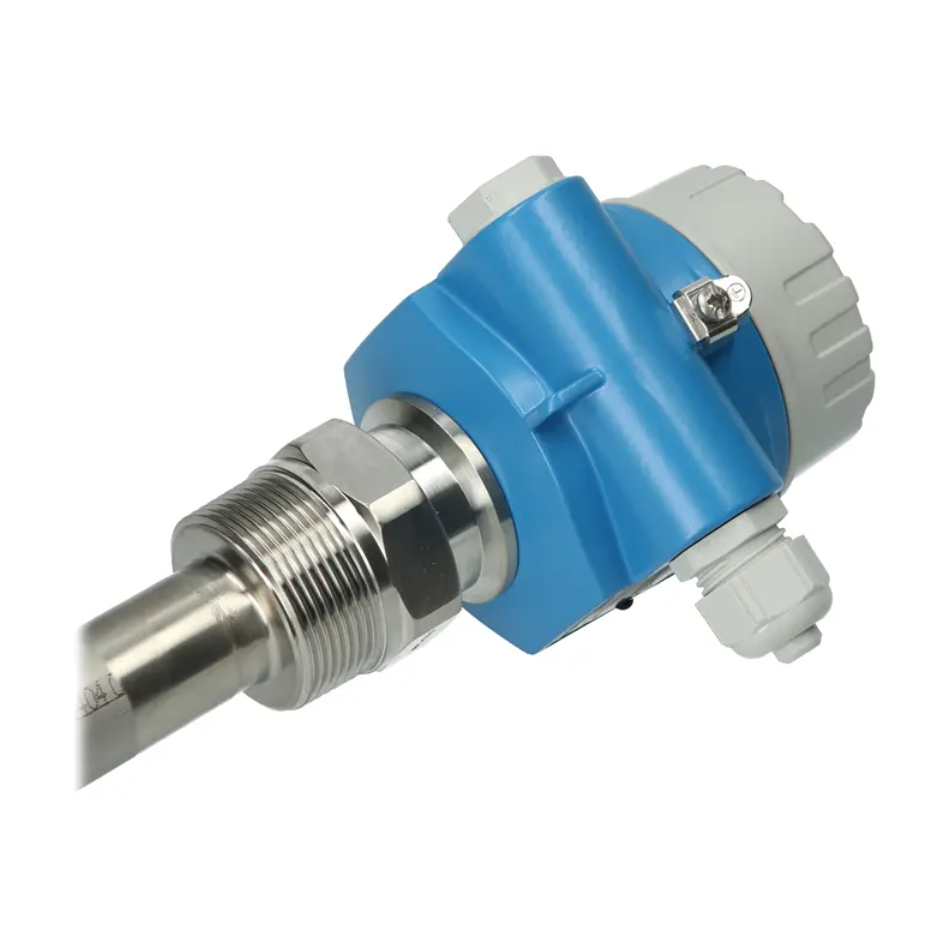

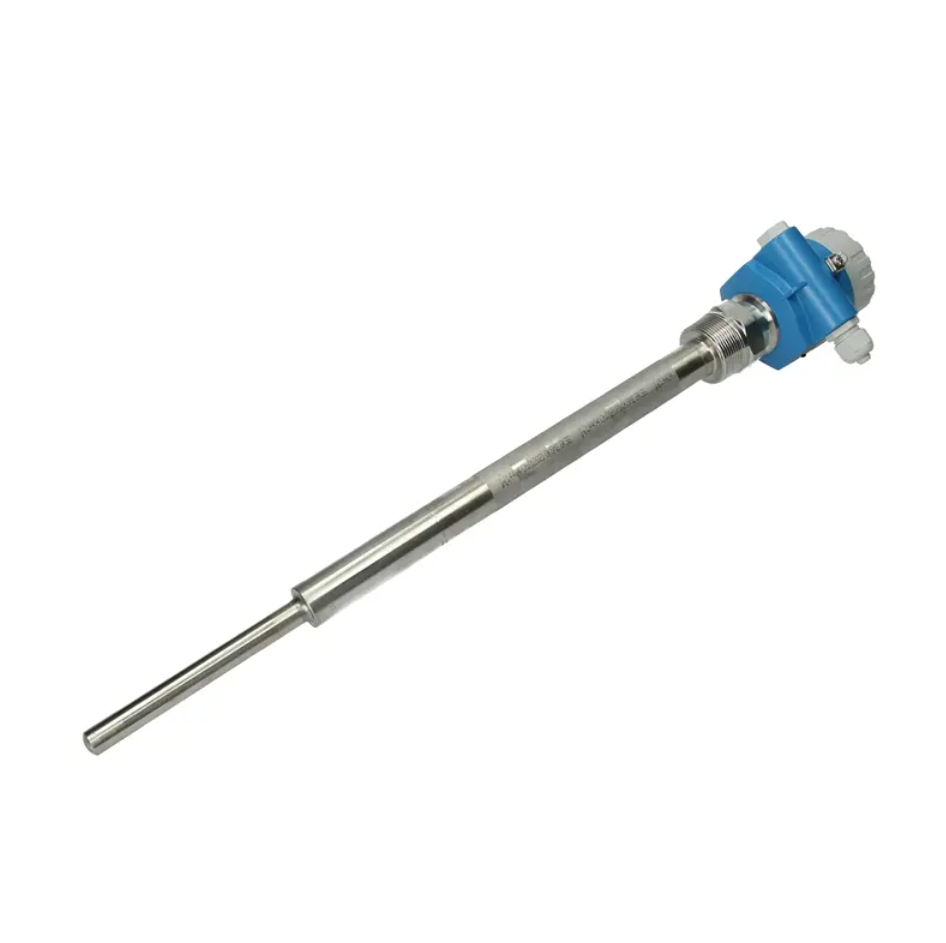

Vibronic Point level detection Soliphant FTM21
Specifications
Measuring principle |
Vibration Solids |
Characteristic / Application |
Point level switch for fine grained solids Grain size <= 25 mm (<= 0.98 in) Single rod No calibration required Not affected by build-up or external vibration Robust Switch value visible from outside Tube extension |
Supply / Communication |
10 - 45 VDC 19 - 253 VAC relay DC PNP 10 - 45 V |
Ambient temperature |
-40°C ... 70°C (-40°F ... 160°F) |
Process temperature |
-40°C ... 150°C (-40°F ... 300°F) |
Process pressure / max. overpressure limit |
Vacuum ... 25 bar (Vacuum ... 360 psi) |
Min. density of medium |
200 g/l |
Main wetted parts |
316L |
Process connection |
Thread R 1" R 1 1/2" 1 1/4" NPT 1 1/2" NPT |
Sensor length |
500 mm (20") 1000 mm (40") 1500 mm (60") |
