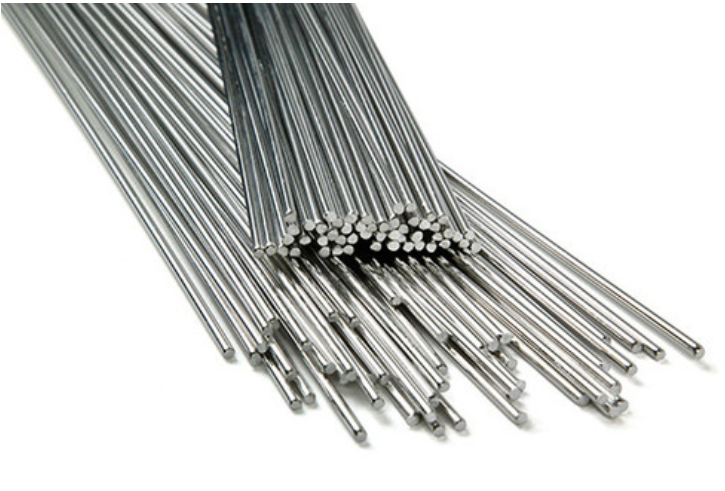

OK Tigrod 316L

Bare corrosion resisting chromium-nickel-molybdenium welding rods for welding of austenitic stainless alloys of 18% Cr - 8% Ni and 18% Cr - 10% Ni - 3% Mo-types.

OK Tigrod 316L has a good general corrosion resistance, particularly against corrosion in acid and chlorinated environments. The alloy has a low carbon content which makes it particularly recommended where there is a risk of intergranular corrosion. The alloy is widely used in the chemical and food processing industries as well as in ship building and various types of architectural structures.

Specifications

Classifications	EN ISO 14343-A : W 19 12 3 L SFA/AWS A5.9 : ER316L Werkstoffnummer : ~1.4430
Approvals	ABS : 1.6-3.2mm BV : 1.6-3.2mm CE : EN 13479 CWB : ER316L DNV : 1.0-4.0mm RINA : 316L BT UKCA : EN 13479 VdTÜV : 1.0-4.0mm

Approvals are based on factory location. Please contact ESAB for more information.

Alloy Type	Austenitic (with approx. 10 % ferrite) 19% Cr - 12% Ni - 3% Mo - Low C
Shielding Gas	I1 (EN ISO 14175)

Typical Tensile Properties

Condition	Yield Strength	Tensile Strength	Elongation
As Welded	470 MPa ( 68 ksi )	600 MPa ( 87 ksi )	32 %

Typical Charpy V-Notch Properties

Testing Temperature	Impact Value
20 °C ( 68 °F )	175 J ( 129 ft-lb )
-60 °C ( -76 °F )	130 J ( 96 ft-lb )
-110 °C ( -166 °F )	120 J ( 88.5 ft-lb )
-196 °C ( -321 °F )	75 J ( 55 ft-lb )

Typical Weld Metal Analysis %

C	Mn	Si	S	P	Ni	Cr	Mo	Cu	N	FN WRC-92
0.01	1.8	0.4	0.01	0.02	12	19	2.6	0.1	0.05	7

Typical Wire Composition %

C	Mn	Si	S	P	Ni	Cr	Mo	Cu	N	FN WRC-92
0.01	1.7	0.4	0.010	0.015	12.0	18.2	2.6	0.10	0.04	7

Ordering

Description	Product number
TIGROD 316L 1/16X39X5KG CJ	163016R150
TIGROD 316L 3/32X39X5KG CJ	163024R150
TIGROD 316L 1/8X39X5KG CJ	163032R150
OK TIGROD 316L 039X39X11#CT	163010R150
OK TIGROD 316L 047X39X11#CT	163012R150
OK TIGROD 316L 5/32X39X11#CT	163040R150
OK TIGROD 316L 5/64X39X11#CT	163020R150
