M04-OX-PM1158

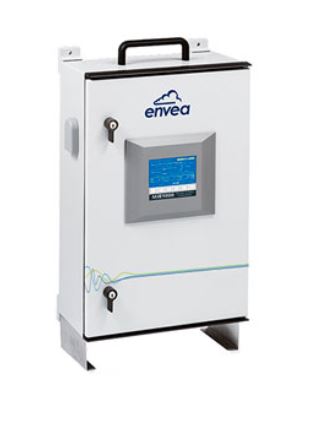

MIR 9000 - Multi-Gas NDIR-GFC analyzer

Offers excellent performance for multigas measurements in dry sampling, including HCl, HF, NO, NO2, N2O, SO2, CO, CH4, TOC, CO2 and O2.

Multi-Gas NDIR-GFC analyzer (Non-Dispersive Infrared Gas Filter Correlation) measuring up to ten gases simultaneously, including Nitrogen Oxide (NO), Nitrogen Dioxide (NO2), Sulphur Dioxide (SO2), Carbon Monoxide (CO), even Hydrogen Chloride (HCl) and Hydrogen Fluoride (HF).

FEATURES AND BENEFITS

  • The MIR 9000 is the most popular ENVEA extractive multi-gas analyzer, being used in all type of industries and compliant with all regulations worldwide
  • Designed to measure dry & corrosive samples
  • Fast & simultaneous measurements of up to 10 gases
  • Dry basis measurement
  • Automatic cross interference correction
  • Ideally used with SEC® box permeation sample drying technology and non-heated sample lines for cost effective operations
  • Intrinsic security with residual H2O measurement
  • Built-in paramagnetic cell for O2 monitoring
  • The MIR-9000 is either available in a 19″ rack or wall mount enclosure (Tight box version)

MAIN APPLICATIONS

  • Stack emission compliance for Municipal and Hazardous Waste Incinerators
  • Cogeneration, Gas Turbines (for ultra-low NOx measurements we recommend the use of the model MIR 9000 CLD)
  • Industrial Boilers and Furnaces
  • Power & Combustion
  • Cement Kilns, Glass, Chemical & Petrochemical Plants
  • Efficiency control for DeNOx systems to guarantee their proper performance
  • For pre and post catalyst SO2 monitoring  (DeSOx unit process control) we recommend the use of the model MIR 9000ASD
