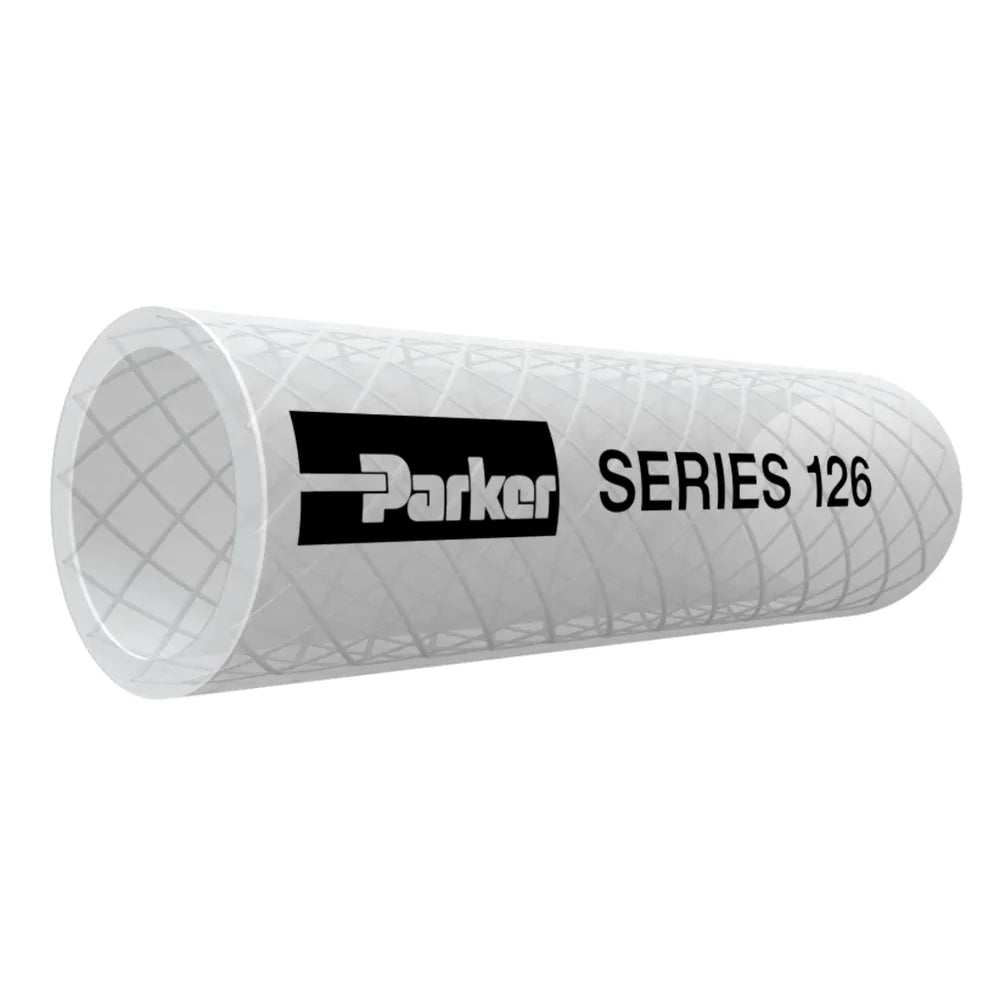

Parker's Series 126 Nexbraid PVC Clear Heavy Duty General Service Hose provides medium pressure heavy duty service across multiple applications. The clear, smooth tube does not impart taste or odor to material being conveyed, allows unimpeded flow and easy and quick observation of the transfer process. The hose is resistant to abrasion and weathering for maximum performance.
Markets:
• Food and Beverage
• General Industrial
Features/Benefits:
• Tube: Clear PVC for sanitary transfer to 150°F.
• Reinforcement: Multiple textile plies for strength and durability.
• Cover: Clear PVC for easy visual observation, and abrasion and weathering resistance.
Specifications
| Cover Material: |
PVC |
| Application: |
PVC Hose |
| Cover Color: |
Transparent, Blue |
| Media: |
Food & Beverage, Water (Potable Water, Pure Water), Water (Pure Water) |
| Specifications Met: |
EU Resolution AP (89), FDA, NSF 51 Listed Certified to 180°F (80°C), USP Class VI |
| Inside Diameter: |
3/4 inch, 19.1 mm |
| Maximum Operating Pressure: |
200 psi at 68°F, 13.8 bar at 20°C |
| Hose Reinforcement Material: |
2 Plies of Textile |
| Package Type: |
Coil |
| Outside Diameter: |
1.120 inch, 28.5 mm |
| Hose Inner Tube Material: |
Clear, PVC |
| Cover Structure: |
Smooth |
| Minimum Operating Temperature: |
25 °F, -5 °C |
| Maximum Operating Temperature: |
150 °F, 65 °C |
| Vacuum Pressure Rating: |
Light |
| Weight: |
0.30 lb/ft, 0.44 kg/m |
| Length per Package: |
200 ft |
| Minimum Bend Radius: |
n/a |
| Maximum Working Pressure (psi): |
200 at 68F |
| Hose I.D. (inch): |
3/4 |
