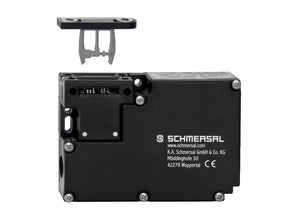

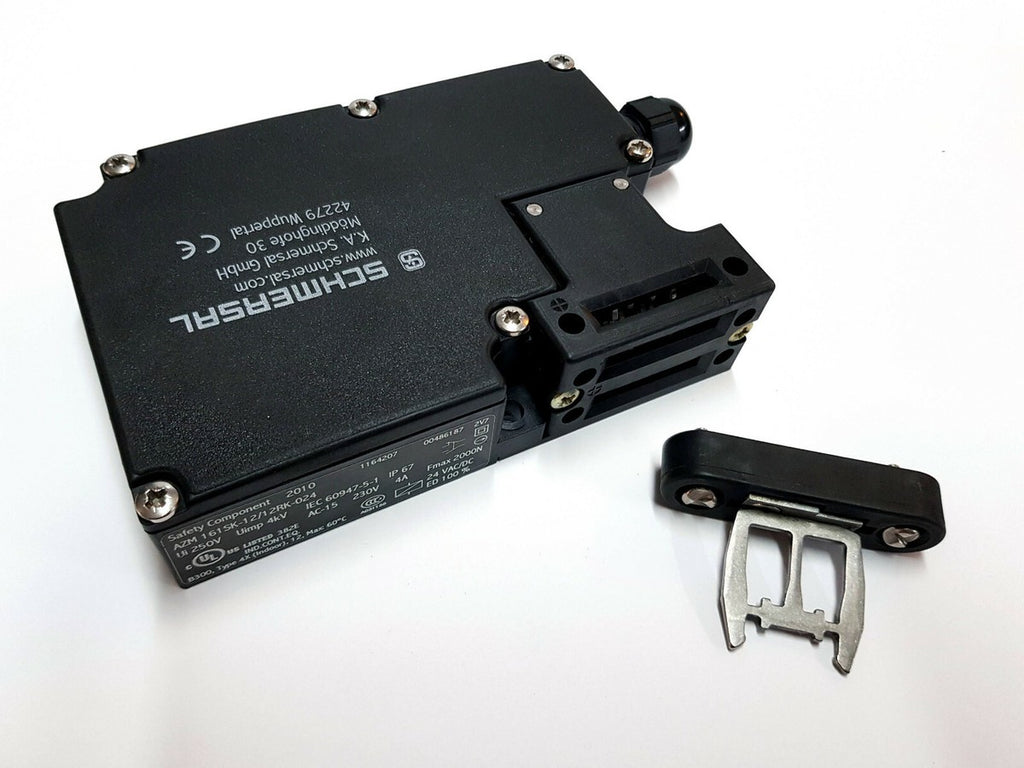

AZM 161SK-12/12RK-024
- Large wiring compartment
- Manual release
- cable entries 4 M 16 x 1.5
- Thermoplastic enclosure
- Double-insulated
- Interlock with protection against incorrect locking.
- 130 mm x 90 mm x 30 mm
- 6 Contacts
- Long life
General data
| Standards |
EN ISO 13849-1 EN ISO 14119 EN IEC 60947-5-1 |
| Coding level according to EN ISO 14119 |
Low |
| Working principle |
electromechanical |
| Housing material |
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight |
450 g |
Mechanical data
| Mechanical life, minimum |
1,000,000 Operations |
| Actuating play in direction of actuation |
5.5 mm |
| Holding force FZh in accordance with EN ISO 14119 |
2,000 N |
| Holding force Fmax, maximum |
2,600 N |
| Latching force |
30 N |
| Positive break travel |
10 mm |
| Positive break force per NC contact, minimum |
10 N |
| Positive break force, minimum |
20 N |
| Actuating speed, maximum |
2 m/s |
| Mounting |
Screws |
| Type of the fixing screws |
3x M5 |
| Type of the screw head |
Flat head screw |
| Tightening torque of the fastening screws for the housing cover |
0.6 Nm |
Dimensions
| Length of sensor |
30 mm |
| Width of sensor |
130 mm |
| Height of sensor |
90 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-30 ... +60 °C |
| Storage and transport temperature |
-30 ... +85 °C |
| Note (Relative humidity) |
non-condensing non-icing |
| Protection class |
II |
| Permissible installation altitude above sea level, maximum |
2,000 m |
Electrical data
| Thermal test current |
6 A |
| Rated control voltage |
24 VAC/DC |
| Required rated short-circuit current |
1,000 A |
| Electrical power consumption, maximum |
10 W |
| Switching element |
NO contact, NC contact |
| Switching principle |
slow action, positive break NC contact |
| Maximale Schalthäufigkeit |
1,000 /h |
| Material of the contacts, electrical |
Silver |
