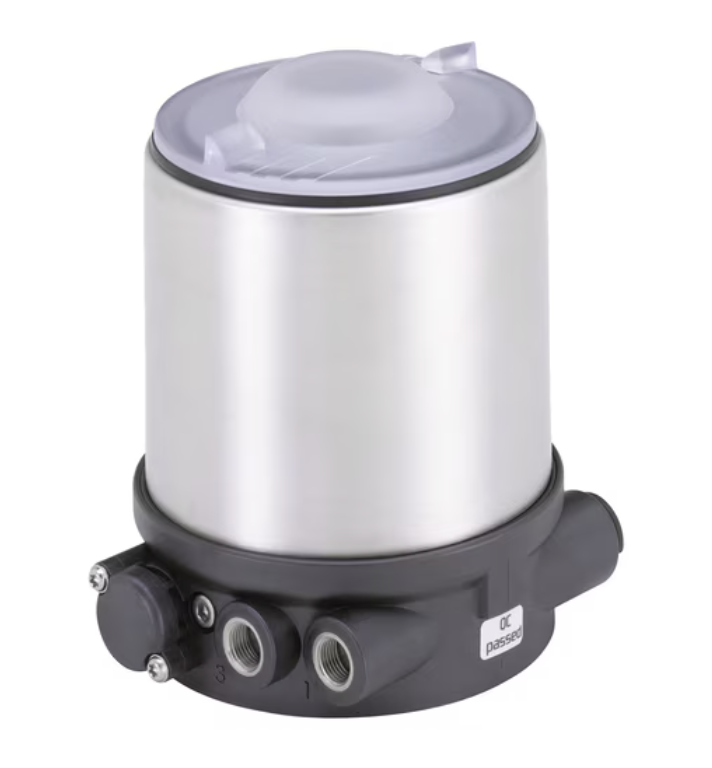

Technical Specification: Control Head Type 8691
Product Description: Control head top 70 mm for actuator 20XX.
General & Performance Data
| Feature | Specification |
| Flow Rate | 250.00 l/min | Protection Type | IP65 / IP67 |
| Manual Actuation | Yes | Pneumatic Function | Single-acting (Pneumatic function 1) |
Electrical Specifications
| Feature | Specification |
| Rated Voltage | 24.00 V DC | Voltage Type | DC (Direct Current only) |
| Electrical Connection | Screw-type terminal with cable feed-through | Supply Configuration | Standalone (No system-internal, BUS, or separating barrier supply) |
Control & Position Feedback
| Feature | Specification |
| Feedback Type | Inductive displacement transducer (PNP) | Internal Feedback | 2 PCE |
| Feedback Voltage Range | 0 V to 24 V DC | Visual Position Indicator |
Top: Yellow Bottom: Green |
Process Connections
| Feature | Specification |
| Port Connection 1 | Internal Thread | Thread Marking / Type | 1/8 / G |
Actuator Compatibility
This control head is compatible with the following actuator sizes:
50 mm
63 mm
80 mm
100 mm
125 mm
175 mm
225 mm
(Note: Not compatible with 40 mm, 70 mm, 90 mm, or 130 mm actuator sizes).
