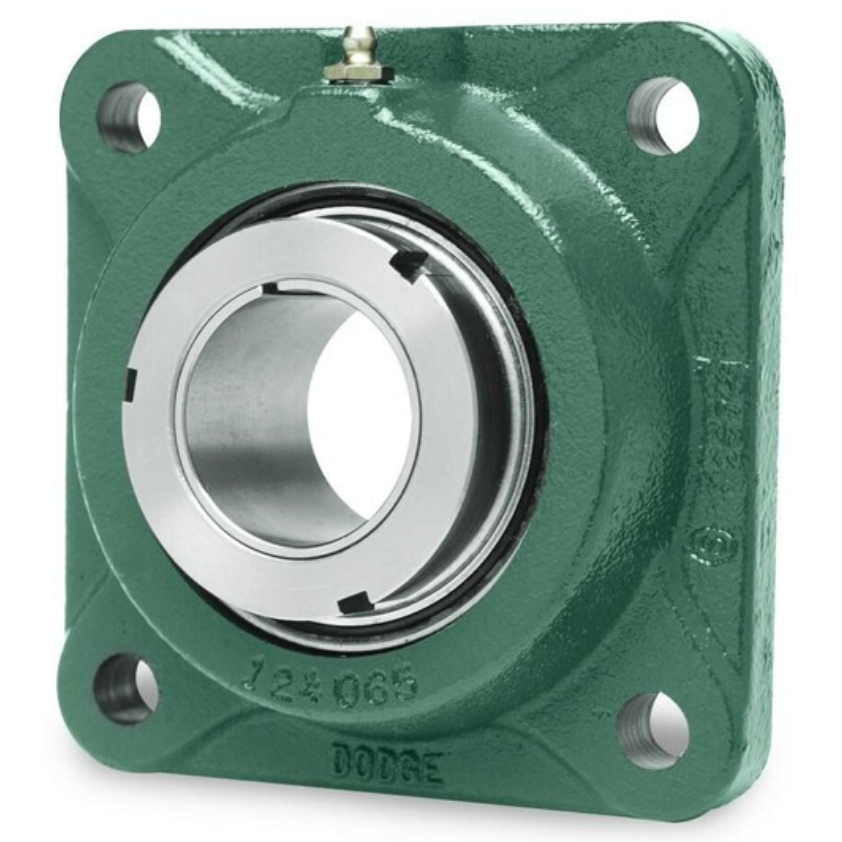

Dodge 052302 F4B-SCM-115-NL Four Bolt Flange Bearing
The Dodge 052302 F4B-SCM-115-NL Setscrew Four Bolt Bracket is a mounted flange bearing unit engineered to provide stable shaft alignment, smooth rotation, and long-term durability in demanding industrial environments.
Key Features
-
4-Bolt Flange Mount Design
Ensures secure and stable installation on machinery frames and surfaces.
-
Set Screw Locking Mechanism
Provides strong shaft grip and easy installation—no complicated setup required.
-
Heavy-Duty Cast Iron Housing
Built to handle tough loads and harsh operating conditions.
-
DualGuard Sealing System
Protects against dust, moisture, and contaminants for extended bearing life.
-
Lubed-for-Life (NL Variant)
Reduced maintenance requirements—because nobody enjoys relubrication schedules.
Specifications
-
Product Name: Setscrew Four Bolt Bracket / Flange Bearing Unit
-
Part Number: F4B-SCM-115-NL
-
Reference: Dodge 052302
-
Brand: Dodge (RBC Bearings)
-
Bearing Type: Mounted ball bearing (flange unit)
-
Mounting Type: 4-bolt square flange
-
Locking Type: Set screw locking collar
-
Shaft Diameter: 1-15/16 in (1.9375")
-
Housing Material: Cast iron
-
Bearing Series: 211 series
-
Seal Type: Single lip contact seal with flinger (DualGuard)
-
Duty Type: Medium-duty industrial
-
Expansion Capability: Non-expansion (fixed bearing)
-
Bolt Hole Spacing: ~5-1/8 in (130 mm)
-
Lubrication: Grease / sealed (NL = no relubrication required)
-
Applications:
- Conveyors
- Air handling systems
- Packaging & processing equipment
- General industrial machinery
