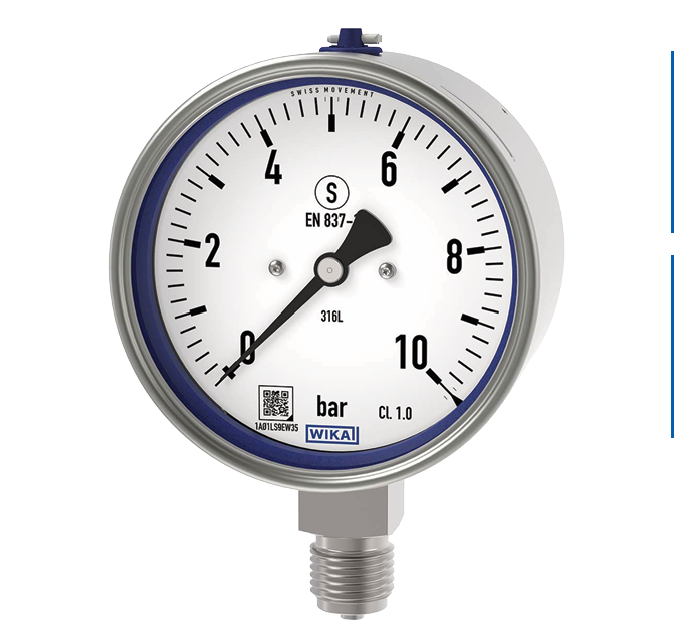

Bourdon Tube Pressure Gauges, Safety Pattern
Series EN 837-1
Model: 232.30
Specifications according to data sheet: PM 02.04
Measuring system: stainless steel
Case filling: without
Nominal size: 100 mm
Measuring range: gauge pressure range
Scale range: 0...400 kPag
2nd Scale or Special Scale: 2nd scale psig
Process connection: Diaphragm Seal
Connector location: lower mount
Window: laminated safety glass
Pointer: adjustable pointer
Smart.Link (Digitalization): without
Accuracy class: class 1.0
Overpressure safe: standard
Case material: Stainless steel 316TI
Case surface: bare
Material pressure element: Measuring System 316L
Case filling fluid: prepared for filling
Ingress protection: IP 65
Movement: stainless steel
Packaging: single packing
Pressure Gauge Standard: International (standard Europe)
color for 2.scale (inside): red RAL 3020
Manufacturer logo: *WIKA*
with Serial number
QR code with extended serial number on dial
Diaphragm seal system with 1 diaphragm seal
Assembly specification High-Side: Direct assembly
System fill fluid: KN 2 Silicone oil for general applications
Process temperature min.: + 21 °C (room temperature)
Process temperature max.: + 100°C
Ambient temperature pressure meas. min: + 10 °C
Ambient temperature pressure meas. max: + 40 °C
Model 990.27 2' Class 600 following ASME B16.5
Diaphragm seal, flange type, flush diaphragm
Upper body material / main body material: Stainless steel 1.4404 (316L); UNS S31603
Sealing face: RF 125...250 AA
Sealing face material: Hastelloy C276 2.4819; UNS N10276
Diaphragm material: Hastelloy C276 2.4819; UNS N10276
Label: WIKA standard without / with Tag-number
TAG-1 (SS tag plate)
PG2903
Customs tariff number: 90262040
Country of origin: MYSAutres produits
