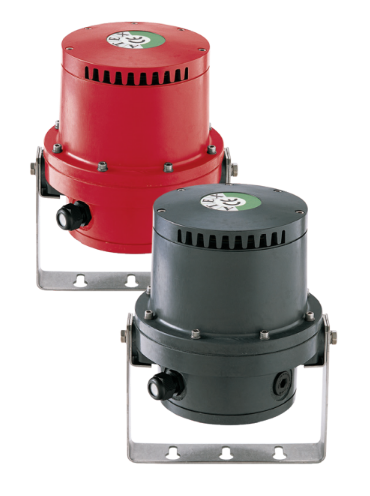

| Housing Glass fibre-reinforced polyesterColour Black or redVolume Approx. 105 dB (A), in 1 m distanceIngress protection IP 66 according to IEC 60529Protection class II (no equipotential bonding necessary)Cable glands 1 x M20 x 1.5 cable gland and 1 blind plug M20 x 1.5 dRGH21: 2 x M20 x 1.5 cable glandsConnection terminals Terminal capacity: 2,5 mm² single-wire 1,5 mm² fine-wireOperating conditions Indoors and outdoorsOperating position Preferably sound exit to the frontOperating mode Continuous operationTemperature rangeOperation-20 °C to +70 °C (T6) -20 °C to +75 °C (T5)Storage-20 °C to +80 °CWeight 5.5 kg Item Attributes Color | Black or Red |
| Weight | 5.5 kg |
| Part Number | FHF92024210 |
| Operating Temperature | -20 °C to +70 °C (T6), -20 °C to +75 °C (T5) |
| Cable Length | 1 x M20 x 1.5 cable gland and 1 blind plug M20 x 1.5 dRGH21: 2 x M20 x 1.5 cable glands |
| Ingress Protection | IP 66 according to IEC 60529 |
| Housing | Glass fibre-reinforced polyester |
| Connection Size | Terminal capacity: 2,5 mm² single-wire 1,5 mm² fine-wire |
| Brand | FHF |
| Storage Temperature | -20 °C to +80 °C |
| Protection Class | II (no equipotential bonding necessary) |
| Volume | Approx. 105 dB (A), in 1 m distance |
| Operating Environment | Indoors and outdoors |
| Operating System | Preferably sound exit to the front, Continuous operation |
