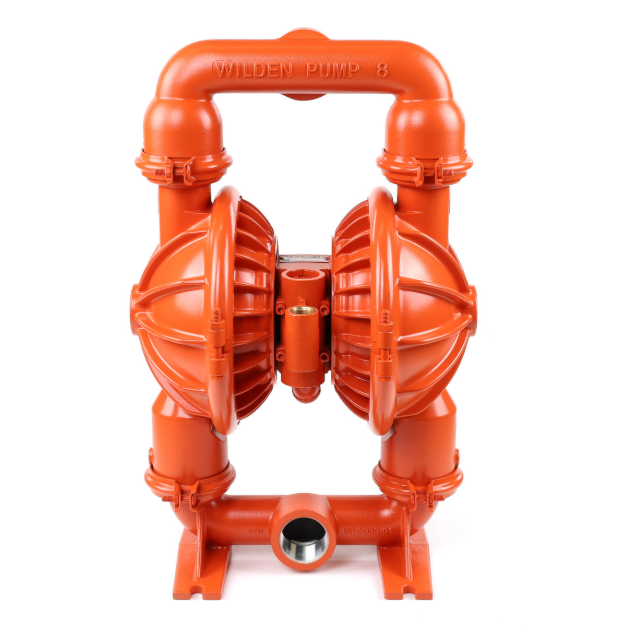

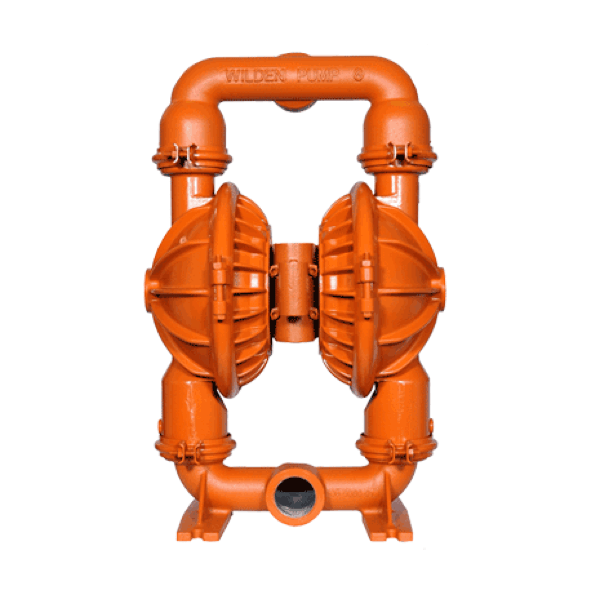

08-11138 - AODD Pump, Alumi...

Attributes

 Model 2 Technical Construction CLAMPED
Diaphragm Material FKM Diaphragm Design Traditional
Connection Standard NPT Inlet Size 2.0
Discharge Size 2.0 Discharge Orientation CENTER HORIZONTAL FRONT
Air Side Material POLYPROPYLENE Valve Material FKM
Muffler Material Aluminum Maximum Allowable Operating Pressure 125.0
Flow Rate 40 Psi 115.0 Max Air Pressure 125.0
Flow Rate 50 Psi 108.0 Max Flow Rate 163.0
Flow Rate 60 Psi 83.0 Flow Rate 70 Psi 75.0
Flow Rate 80 Psi 55.0 Flow Rate 90 Psi 50.0
Flow Rate 100 Psi 31.0 Flow Rate 120 Psi 0.0
Max Suction Lift Dry 21.0 Max Operating Temperature 175.0
Max Air Consumption 120.0 Min Operating Temperature 32.0



Performance
