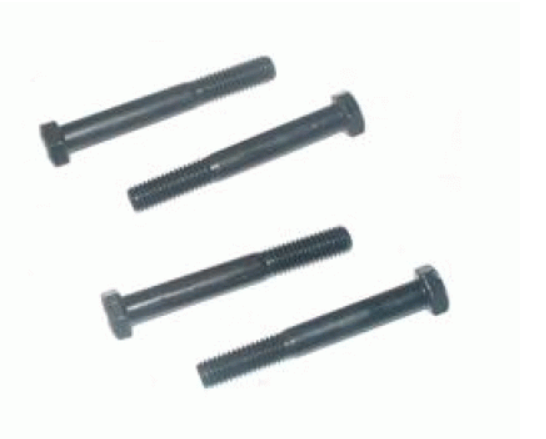

0S-1619: CAP SCREW
Descriptions
Cat bolts and matching hardened washers and nuts form a matched system which produces consistently high clamp loads.
Specifications
-
Bolt Length (in): 3
-
Bolt Type: Hex Head
-
Coating: Zinc Phosphate + Oil
-
Grip Length (in): 2
-
Thread: Coarse
-
Thread Size (in - TPI) (in): 3/8-16
-
Hand of Thread: RH
-
Material: Alloy Zinc,Carbon Steel
-
Total Bolt Length - 3 (in): 3
-
Hole Thread Pitch: 16
-
Finish: Phosphate and Oil Coated
-
Grip Length - 2 (in): 2.00
-
Class or Grade: SAE J429 Grade 8 (150 ksi)
-
Head Height - 4 (in): 0.29
-
Grade: 8
-
Material Description: SAE J429 Grade 8 (ISO Class 10.9)
-
Locking Feature: 0
-
Head Width - 5 (in): 0.56
