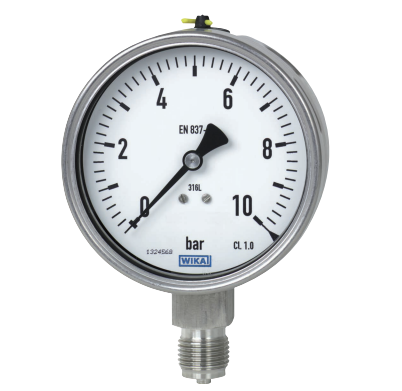

Liquid Filled Pressure Gauge – APSS Store

Secure Payment Gateway

american express

google pay

jcb

master

visa

Type 115

Applications

Used for hydraulic and pneumatic systems
Compressors, compressed air system
Suitable for fluid medium which does not clog connection port or brass
Used for providing protection from vibration and pulsation．

Specifications

Case: stainless steel
Ring: stainless steel
Window: polycarbonate (glass)．
Socket & Connection: brass
Movement: semi-brass (complete brass)
Bourdon tube: copper alloy (brass)
Pointer and dial: aluminum
Liquid: glycerine, silicone
Range: vacuum, compound 0 to 6000 psi
Accuracy Class：F±3/2/3%(ASME B40.100 Grade B)
Kl 2.5 FOR 1 1/2″,2”, Kl 1.6 FOR 2 1/2″,3″,4”

Operating temperature

Ambient：-4°F to 140°F (-20℃ TO +60℃)
Media：140°F (+60℃)
