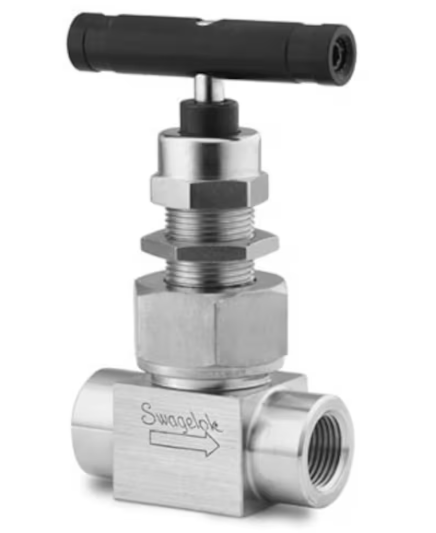

Stainless Steel Severe Service Union Bonnet Needle Valve, 2.4 Cv, 1/2 in. FNPT, Ball Stem, Grafoil Packing
Engineered for reliability in the most demanding environments, the Swagelok 2507-12NBF8-G-2507 combines the proven performance of our severe-service union-bonnet needle valve design with the superior strength and corrosion resistance of Super Duplex Alloy 2507.
Exceptional Strength & Durability – Alloy 2507 provides high tensile and yield strength with excellent resistance to stress-corrosion cracking and pitting, even in harsh offshore and chemical processing applications.
High Pressure Capability – Rated up to 6000 psi (413 bar) at room temperature, ensuring safe, leak-tight operation in critical systems.
Wide Temperature Range – Grafoil® packing ensures reliable sealing from –65 °F (–53 °C) up to 1200 °F (648 °C).
Optimized Flow Control – Precision ball-stem tip design delivers consistent shutoff, smooth operation, and a flow coefficient (Cv) optimized for high-performance applications.
Versatile Connections – ½ in. NPT female ends provide compatibility with a wide range of system designs.
| Attribute |
Value |
| Body Material |
316 Stainless Steel |
| Cleaning Process |
Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size |
1/2 in. |
| Connection 1 Type |
Female NPT |
| Connection 2 Size |
1/2 in. |
| Connection 2 Type |
Female NPT |
| CV Maximum |
2.2 |
| Flow Pattern |
Straight (2-way) |
| Handle Style |
Aluminum Bar |
| Maximum Temperature, °F (°C) |
1200 (648) |
| Max Temperature Pressure Rating |
1200°F @ 1715 PSIG /648°C @ 118 BAR |
| Minimum Temperature, °F (°C) |
-65 (-53) |
| Orifice |
0.437 in |
| Packing Material |
Grafoil Stem packing |
| Room Temperature Pressure Rating |
6000 PSIG @ 100°F /413 BAR @ 37°C |
| Stem Tip Material |
Cobalt Based Alloy |
| Stem Type |
Ball stem |
| eClass (4.1) |
37010201 |
| eClass (5.1.4) |
37010201 |
| eClass (6.0) |
37010203 |
| eClass (6.1) |
37010203 |
| eClass (10.1) |
37010203 |
| UNSPSC (4.03) |
40141602 |
| UNSPSC (10.0) |
40141602 |
| UNSPSC (11.0501) |
40141602 |
| UNSPSC (13.0601) |
40141602 |
| UNSPSC (15.1) |
40141602 |
| UNSPSC (17.1001) |
40183103 |
