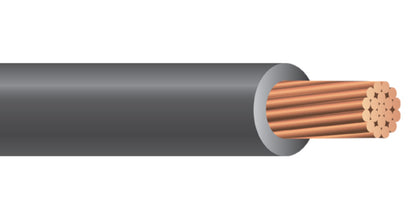

2/0-19 CU (67.4mm2) SIMpull(R) XHHW-2/RW90 GREEN

Availability: 0 left in stock
SKU: APSS-ITEM-00010036
Part Number: 55207099

Southwire #: 55207099

Construction

Conductor: Class B compressed stranded bare copper per ASTM B3 and ASTM B8
Insulation: Cross Linked Polyethylene (XLPE) with SIMpull Technology. Silicone-Free, Abrasion, High-Heat, Moisture Resistant

Specifications

Cond. Size	2/0 AWG
Conductor Number	1
Cond. Strands	19
Diameter Over Conductor (in)	0.405
Insulation Thickness (mils)	55
Approx. OD (in)	0.524
Copper Weight (lbs/1000')	410
Approx. Weight (lbs/1000')	452

Standards & References

ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
ASTM B787 19 Wire Combination Unilay-Stranded Copper Conductors
UL 44 Thermoset-Insulated Wires and Cables
UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test (1/0 and Larger)
CSA C22.2 No. 38 Thermoset-insulated wires and cables
ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
IEEE 1202/FT4 Flame Test (70,000 BTU/hr) 350kcmil and Larger
Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
Federal Specification A-A-59544
NMX-J-451-ANCE Thermoset insulated wires and cables
NOM-063-SCFI Electrical Products – Conductors – Safety Requirements

FEATURES
- SIS- 8 AWG
- Sunlight resistant
- -40°C Cold bend
- FT1
- Gasoline and Oil Resistant II
- CT Rated- 1/0 AWG and larger
- FT4- 350 kcmil and larger
- RoHS/REACH Compliant
- SPEC 10005 for circuit sizes 14 AWG, 12 AWG, and 10 AWG
