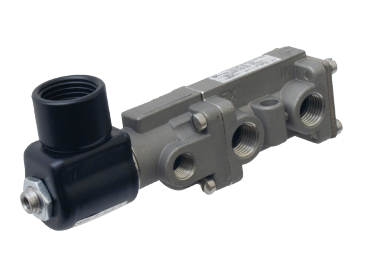

Valve, 3-Way, SST, 24VDC
Part number: BSG-3328-316-XX-D024
B-316 Series Directional Control Valve
The VERSA B-316 Series is a complete line of compact, rugged three-way (3/2), side-ported valves constructed of 316 stainless steel which conforms to NACE standard MR-01-75. They are designed for use in corrosive environments and to control a variety of aggressive media as well as air. The B-316 Series is the pneumatic leader for use in process control, wellhead and safety shutdown systems.
Product Features
- Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
Solenoid Features
- Solenoid coil connection: 1/2" NPT female conduit with 24" wires
Specifications
| Product Code | Valve, B-316 Series |
|---|---|
| Actuation | Solenoid-Pilot | Spring Return |
| Function | 3-way, 2-pos, NC |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 18-120 psi |
| Valve Pressure Range (BAR) | 1.24-8.27 bar |
| Primary Flow | 1.6 Cv |
| Media | Air - Inert Gas, Hydraulic, Natural Gas |
| Gas Temperature Range (F) | -4°F to 194°F |
| Gas Temperature Range (C) | -20°C to 90°C |
| Dust Temperature Range (F) | -4°F to 194°F |
| Dust Temperature Range (C) | -20°C to 90°C |
| Seal Material | FKM |
| Body & Internal Parts | 316L Stainless Steel |
Solenoid Specifications
| Solenoid Description | Hazloc- E5 Class |
|---|---|
| Voltage | 24 V DC ±10% (D024) |
| Power | 1.8 W |
| Inrush Current | 77 |
| Holding Current | 77 |
| Resistance | 312 |
| Ingress Protection Rating | NEMA 4X |
| Electrical Protection | NA |
| Area Classification | Cl I, Grps C,D - Cl II, Grps E,F,G - Cl I, Div 2, Grps A,B,C,D - Cl II, Div 2, Grps E,F,G |
| T Rating (Gas) | 4 |
| T Rating (Dust) | 4 |
| Solenoid Housing Material | Steel - Plated |
| Solenoid Seal Material | FKM |
| Solenoid Connection | 1/2" NPT female conduit with 24" wires |
| Certification | cULus |
