Valve, 3-Way, SST, 24VDC | ...

Valve, 3-Way, SST, 24VDC

Part number: CSG-3321-316-U-XDBT8C-D024

C-316 Series Directional Control Valve

The VERSA C-316 Series stainless steel valve is available as either a 4-way, for double-acting devices or a 3-way, for spring return devices. All solenoid actuators are solenoid/pilot type, which allows the use of the smallest solenoids available, resulting in low power consumption. This design also assures a positive shifting force, which ensures the valve shifts when energized and reduces the chance of coil burnout.

Product Features

  • Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

Solenoid Features

  • Solenoid coil connection: 1/2" NPT female conduit with integral junction box

Specifications

Product Code Valve, C-316 Series
Actuation Solenoid-Pilot | Spring Return
Function 3-way, 2-pos, NC
Port Size Body Ported, 1/4" NPT
Valve Pressure Range (PSI) 25-150 psi
Valve Pressure Range (BAR) 1.72-10.3 bar
Primary Flow 2.0 Cv
Media Air - Inert Gas, Hydraulic, Natural Gas
Temperature Range (F) -4°F to 194°F
Temperature Range (C) -20°C to 90°C
Seal Material FKM
Body & Internal Parts 316L Stainless Steel

Solenoid Specifications

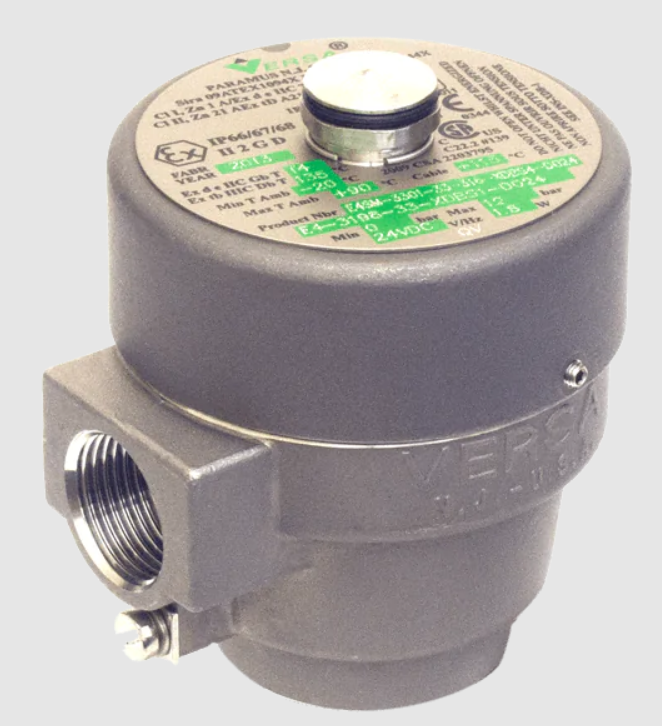

Solenoid Description Hazloc - E4 Class XDB Option
Voltage 24 V DC ±10% (D024)
Power 1.8 W
Inrush Current 75
Holding Current 75
Resistance 320
Ingress Protection Rating IP66 / 67 / 68, NEMA 4X & 6P
Electrical Protection 303D
Area Classification Cl I, Grps B,C,D - Cl I, Div 2, Grps A-D, Cl II, Grps E,F,G - Cl III, Cl I, Zn 1 A/Ex db IIC - Cl II, Zn 21 AEx tD A21, DIP A21
Protection Classification db tb
Zone 1
T Rating (Gas) 4
T Rating (Dust) 135
Solenoid Housing Material Stainless Steel - Type 316L
Solenoid Seal Material FKM
Solenoid Connection 1/2" NPT female conduit (integral junction box)
Certification ATEX, cCSAus, IECEx, INMETRO, KC, NEPSI-CCC, PESO, TR-CU, TS OSHA
