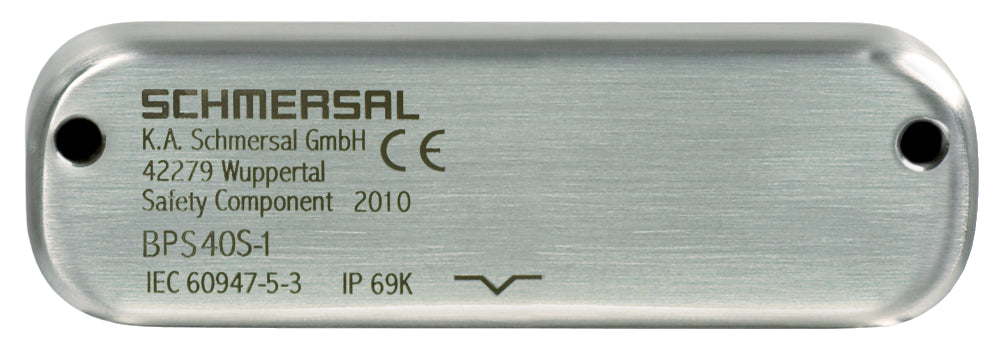

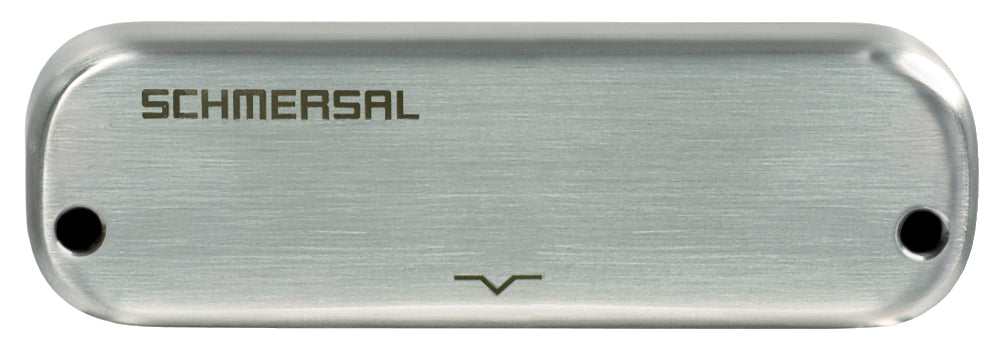

The Schmersal EX-BPS 40S is a magnetic safety actuator designed for use with EX-rated safety sensors (BNS 40S series) in hazardous industrial environments. It plays a key role in machine safety systems by enabling non-contact position detection for guards, doors, and safety mechanisms.
Built with a robust stainless steel housing, this actuator is engineered for durability and reliable performance in harsh conditions, including explosive atmospheres.
Key Features
- Magnetic actuator for non-contact safety switches
- Designed for EX (explosion-protected) environments
- Certified for ATEX Zone 2 and Zone 22
- Durable stainless steel (V4A) housing
- Compact and robust design for industrial applications
- Compatible with Schmersal BNS 40S safety sensors
Technical Specifications
- Model: EX-BPS 40S
- Brand: Schmersal
- Type: Safety actuator (magnetic)
- Function: Position detection for safety switches
- Housing Material: Stainless steel (V4A)
- Dimensions: approx. 88 × 27 × 14 mm
- Weight: ~130 g
- Protection: ATEX Zone 2 / Zone 22
- IP Rating: up to IP67 (series dependent)
- Compatibility: BNS 40S safety sensors
