Parker Autoclave Engineers CGLX40 Specification

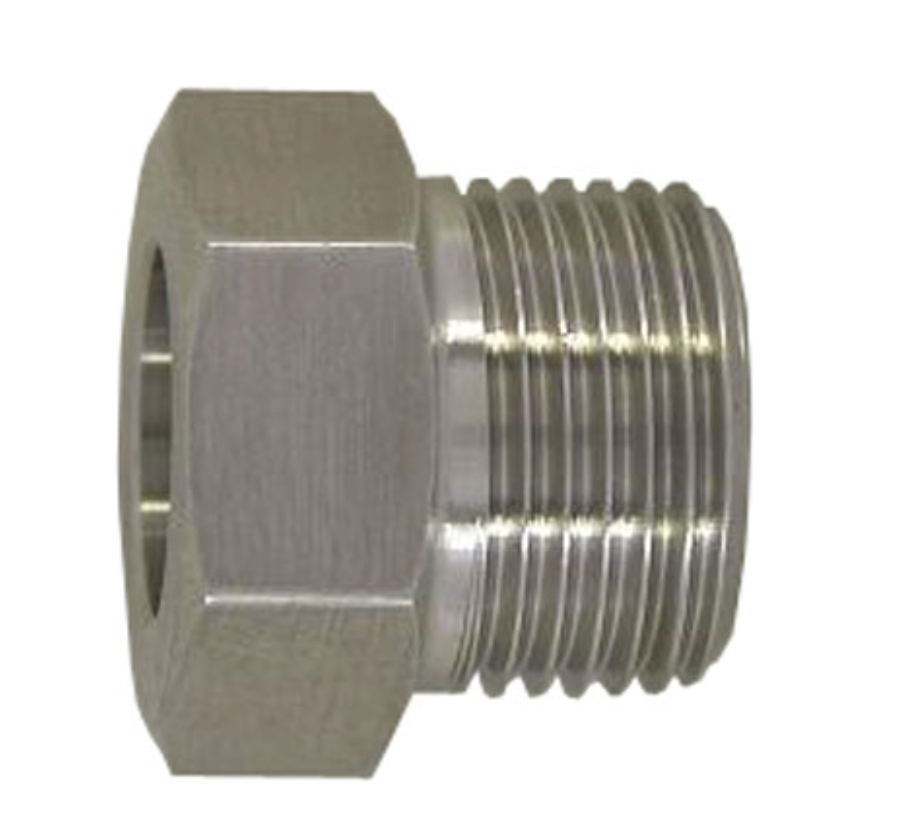

The Parker Autoclave Engineers CGLX40 is a medium-pressure, coned-and-threaded tube connection gland designed for reliable fluid handling in high-demand industrial environments.
Core Product Information
- Manufacturer: Parker Autoclave Engineers
- Product Series: SF Series (Medium Pressure)
- Configuration Type: Tube Connection Gland
- Part Number / MPN: CGLX40
Technical Specifications
- Tube Connection Size: 1/4 Inch (6.35 mm)
- Connection Type: SF250CX ("SlimLine" coned-and-threaded)
- Maximum Pressure Rating: 20,000 PSI (1,378.93 bar) at room temperature
- Operating Temperature Range: -425°F to 1,200°F (-254°C to 649°C)
- Primary Material: Cold-worked 316 Stainless Steel
- Measurement System: Inch
Design & Features
- High Flow Profile: Engineered with custom orifice sizes to support high-flow characteristics.
- Component Availability: Can be purchased as a replacement component or supplied complete with medium-pressure valves and fittings.
- Special Material Configurations: Standard parts use a hexagonal shape, but custom or exotic materials may feature four flats instead of a standard hex.
- Regulatory Compliance: Manufactured under ISO 9001 applicable standards.
Target Applications
- High-pressure test panels
- Offshore skid panels
- Chemical injection systems
- High-pressure gas systems
- Commercial operations across chemical, petrochemical, research, and oil & gas industries
