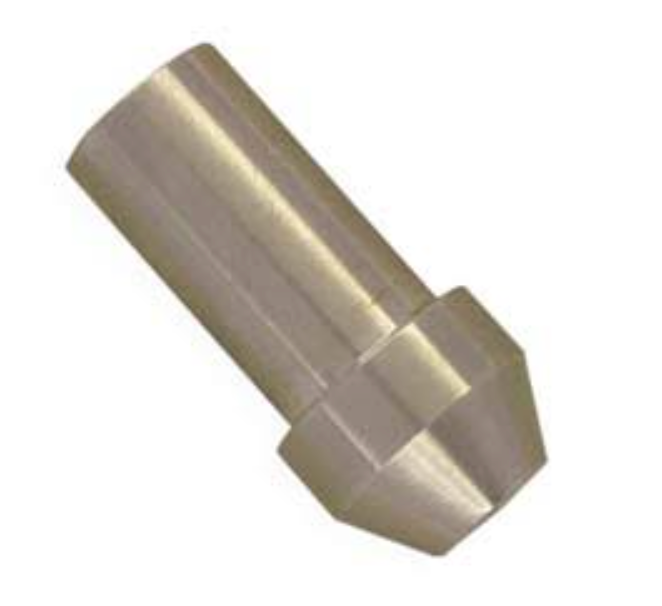

The Parker Autoclave CPX120 is an industrial Medium Pressure Connection Plug manufactured under the SF Series. It is designed to block or seal ports securely in high-pressure fluid and gas systems.
Physical & Material Attributes
- Component Type: Connection Plug
- Nominal Tube Size: 3/4 Inch (19.05 mm)
- Connection Type: SF750CX ("SlimLine" coned-and-threaded)
- Material: 316 Cold-Worked Stainless Steel (UNS S31600 / S31603)
- Process: Cold Worked to proprietary standards
- Ferrule / Fitting Style: Coned and threaded
- Orifice Diameter: Not Applicable (Solid plug structure)
Performance & Environmental Ratings
- Maximum Pressure Rating: 20,000 PSI (1,379 BAR) at Room Temperature
- Operating Temperature Range: -423°F to +1,200°F (-252°C to +649°C)
Key Features & Deployment
- Collarless Design: When utilizing this connection plug, a compression collar is not required for installation.
- Safety Integration: Includes built-in connection weep holes for precise leak detection and system safety checks.
- Traceability: Fully laser-marked with the manufacturer's name, part number, material grade, and heat code.
- Primary Applications: High-pressure gas distribution, chemical injection skids, offshore testing panels, and petrochemical research facilities.
