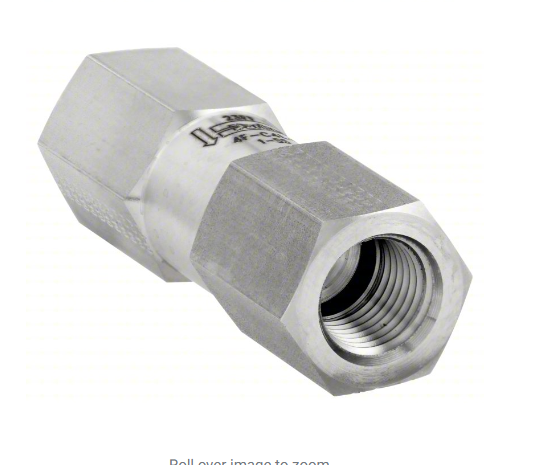

| Valve Body Style | Inline |
| Body Material | 316 Stainless Steel |
| Pipe Size | 3/8 in |
| Connection Type | FNPT x FNPT |
|
3/8 in |
| Connection Gender - Side 1 | Female |
| Connection Type - Side 1 | NPT |
| Connection Size - Side 2 | 3/8 in |
| Connection Gender - Side 2 | Female |
| Connection Type - Side 2 | NPT |
| Max. Pressure (CWP) | 6,000 psi |
| Max. Pressure (Steam) | Not Rated |
| Cracking Pressure | 1 psi |
| Flow Rate | 7.1 gpm |
| Flow Coefficient (Cv) | 2.26 |
| Seal Material | FKM |
| Spring Material | 316 Stainless Steel |
| Media Temp. Range | -15 °F to 400 °F |
| Operating Temperature - Minimum | -15 °F |
| Operating Temperature - Maximum | 400 °F |
| Mounting Orientation | Horizontal; Vertical |
| Standards | ASTM A 276 |
| Height - Cap to Inlet Center | 7-3/8 in |
| Overall Length | 3.03 in |
| Valve Series | C |
