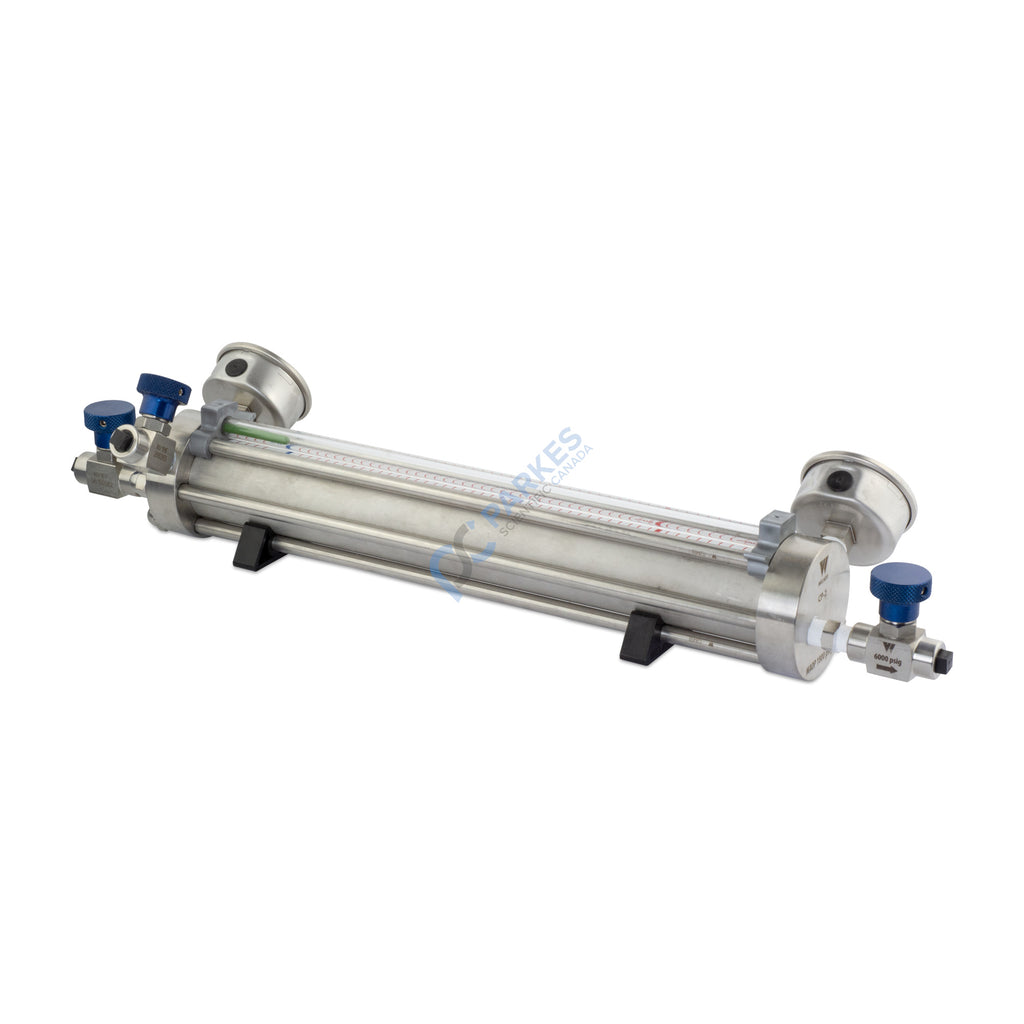

Welker CP-2GM Constant Pressure Cylinder (CPC), with Gravity Mixer

Features

Proven safety in cylinder design
Maintains integrity of the sample at full line pressure from collection to analysis
Product and pre-charge sides with floating piston
Internal Gravity Mixer^™
DOT and Transport Canada* approval for transportation
Manufactured with over 40 years of industry-leading expertise

Materials of Construction	316/316L Stainless Steel
Seal Material Options	Viton® Kalrez®
Sample Inlet Connections	1/4" FNPT
Sample Outlet Connections	1/4" FNPT
Cylinder Volume Options	50 cc 100 cc 150 cc 250 cc 300 cc 400 cc 500 cc 800 cc 1000 cc
Cylinder Mixer Type	Gravity Mixer™
Cylinder Accessories	Rupture Disc, Reliefs, Valves, and Gauges
Operating Pressure	1800 psig MAOP @ -20 °F to 120 °F
Transport Approvals	DOT-SP 7657 Transport Canada SU 4781 (available upon request)
Industry Standards	Complies with API 8.1, API 14.1, ASTM D1265, ASTM D3700, ASTM D4057, GPA 2166, GPA 2174, ISO 3170, ISO 4257, and ISO 10715
