Line Protector, Low Resistance, 20 kA, 36 VAC, DIN Rail, CROUSE-HINDS MTL SD

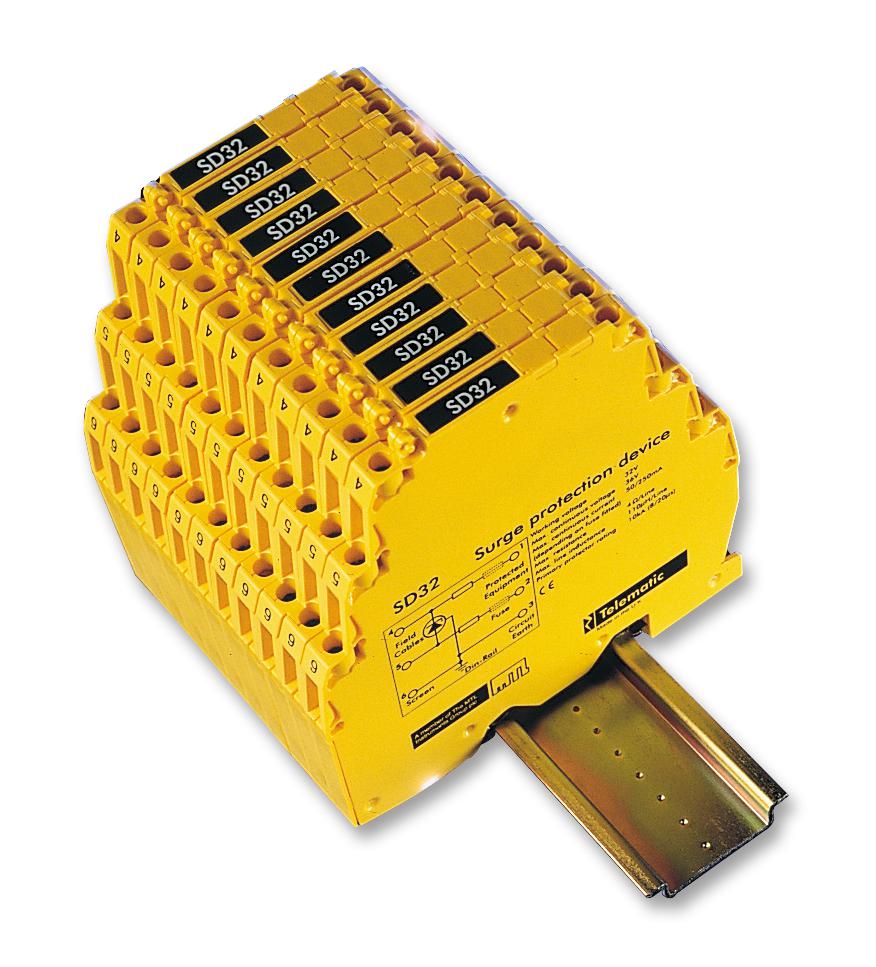

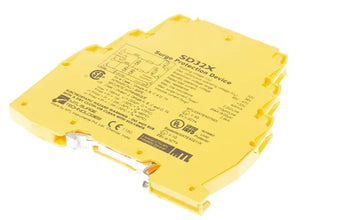

SD32X is an SD series user-friendly surge protective device for protecting electronic equipment and systems against surges on signal and I/O cabling. It combines unparalleled packing densities, application versatility, proven reliable hybrid circuitry, simple installation and optional loop disconnect facilities. This device is used to protect digital (on/off) outputs, alarms, LEDs and solenoid valves etc.

• 32VDC and 22VAC nominal voltage+
• 400mA nominal current and 5μA max leakage current
• 25KHz bandwidth
• Low resistance special features
• Ultra-slim space-saving design, easy installation
• DIN rail mountable
• Low resistance
• Multistage hybrid protection circuitry
• Suitable for use in higher bandwidth applications
