Product Identification
- Part Number: 00644-4430-0002

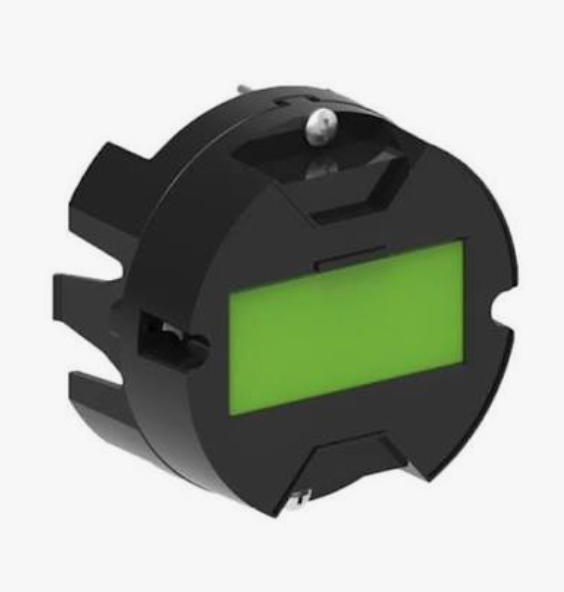

- Component Type: LCD Display Meter with Meter Spacer Assembly (Option M5)
- Manufacturer: Emerson Rosemount
Compatibility and Integration
- Primary Device: Rosemount 644 Temperature Transmitter (Head-mount configuration)
- Communication Protocols: HART (Device Revision 7), FOUNDATION Fieldbus, and PROFIBUS PA
- Hardware Access: Integrated communication clips remain fully accessible for external configuration loop testing while the display is mounted
Display Capabilities
- Process Variable Display: Real-time temperature readings and primary variables
- Engineering Units: Dynamic display of configured measurement units (e.g., °C, °F, K, R, mV, Ohms)
- Diagnostics: Real-time troubleshooting messages, error codes, and percent-of-range bar graph
Physical and Environmental Specifications
- Package Contents: LCD display module, specialized mounting spacer, and structural connection screws
- Installation: Direct plug-in connection to the transmitter electronics module inside the field enclosure
- Rotation: Display module can be rotated in 90-degree increments to optimize viewing angles inside the housing
