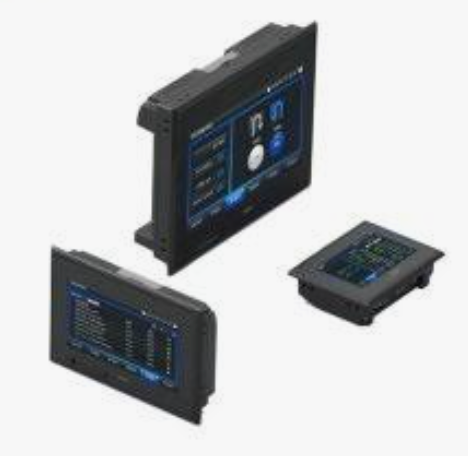

TOPRX1500XD

Features

Quad core CPU: Quad core processor supplying rapid processing speed.
16M Full color: Bright and vivid full color, supports vector image library.
Touch-drag feature: Available touch drag to make a picture memo or scroll down to appear top-side menu.
Refined integrated body: Refined integrated body with advantage of easy.
Compatible with XTOP Series: Same panel cut size of XTOP series easy to replace discontinued XTOP model.
Supporting 2 ethernet channels: 2 Ethernet channels with different IP.
Front-side OTG USB: Supporting both HOST mode(USB devices i.e.Memory, barcode reader, camera, etc) and program transmission mode.

Specifications

Display	Display Type: 15" TFT Color Color: 16M Colors Resolution: 1024 x 768
Serial COM1	RS-232C, RS-422/485 Asynchronous +5Vdc PWR Data bit: 7/8 bits, Stop bit: 1/2 bits Parity bit: None/Odd/Even Baud rate: 2400~115.2kbps Connector: DSUB 9pin x 1
Serial COM2	RS-232C, RS-422/485 Asynchronous Data bit: 7/8 bits Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400~115.2kbps Connector: DSUB 9pin x 1
Serial COM3	RS-485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits Parity bit: None/Odd/Even Baud rate: 2400~115.2kbps Connector: 3.5mm 3pin x 1
Ethernet	IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: RJ-45 x 2
SD Card	SD Card Slot x 1, SDHC(MAX 32GB)
Printer	Roll Printer (EPSON protocol): RS-232C
Memory	Screen Memory: 128MB Backup Memory: 512KB
