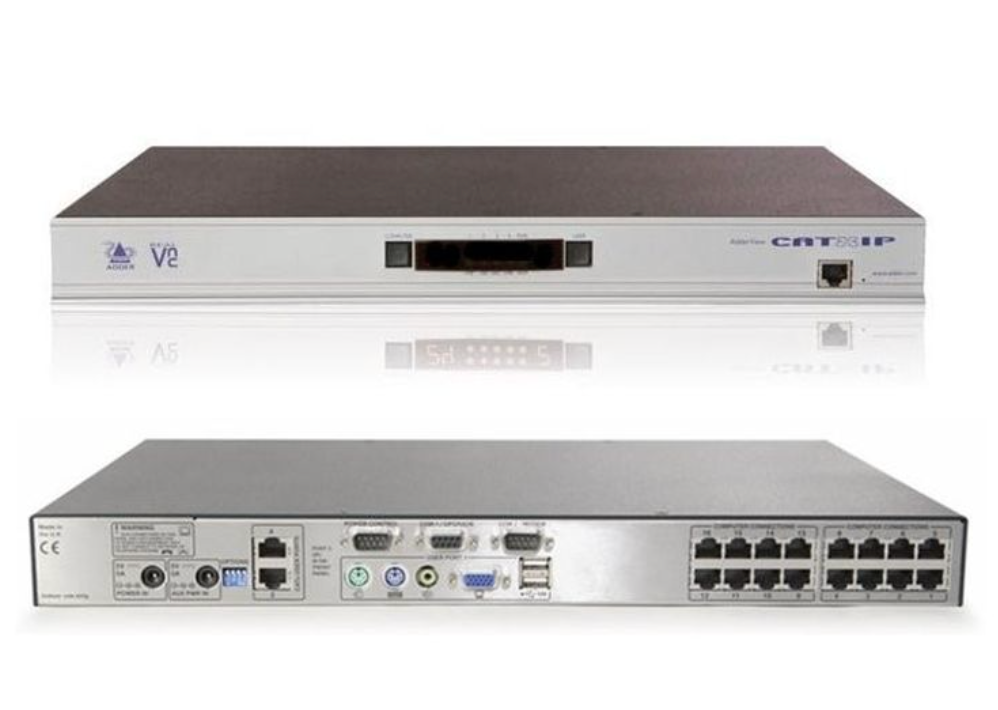

ADDERView CATx 4000 KVM Switch (AVX4016-UK) Technical Specifications
System Overview
- Product Type: High-density KVM (Keyboard, Video, Mouse, Audio) Switch
- Target Environment: Server rooms, data centers, and industrial control environments
- Construction: 1U robust metal chassis suitable for standard 19-inch rack mounting
- Power Localization: UK power cord included (-UK suffix)
Capacity and Connectivity
- Computer Ports: 16 RJ45 ports (CATx cabling)
- Simultaneous Users: 4 concurrent independent local users
- Computer Connection Distance: Up to 50 meters (165 feet) at 1600x1200 resolution, or up to 100 meters (330 feet) at 1280x1024 resolution using Adder Computer Access Modules (CAMs)
- Cascading Support: Expandable to control up to 256 computers via a tree-configuration cascade
User Console Interfaces (Per User Port)
- Video Output: 1x Female HDD15 (VGA)
- Keyboard Connection: 1x Female 6-pin MiniDIN (PS/2) or via USB options
- Mouse Connection: 1x Female 6-pin MiniDIN (PS/2) or via USB options
- Audio Output: 1x 3.5mm stereo jack
Video and Audio Performance
- Maximum Resolution: 1920 x 1440 @ 60Hz
- Video Compensation: Automatic adjusting skew, gain, and brightness correction via integrated DDC
- Audio Quality: Stereo CD-quality audio (16-bit, 44.1kHz)
Management and Security
- Administration: On-Screen Display (OSD), hotkey selection, or front panel buttons
- Access Control: Multi-level user profiles with individual access permissions and passwords
- Flash Upgradeable: Firmware updates via flash memory over serial connection
- Operating System Support: Platform independent (Windows, Linux, Unix, Mac, Sun)
Physical and Environmental Specifications
- Form Factor: 1U rack-mount (rack brackets included)
- Dimensions (W x D x H): 482mm (19.0') x 215mm (8.5') x 45mm (1.8')
- Weight: 2.5 kg (5.5 lbs)
- Power Supply: Internal auto-sensing isolation power supply (100-240V AC, 50-60Hz)
- Max Power Consumption: 40 Watts
- Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)
- Approvals and Compliance: CE, FCC
