Technical Specifications

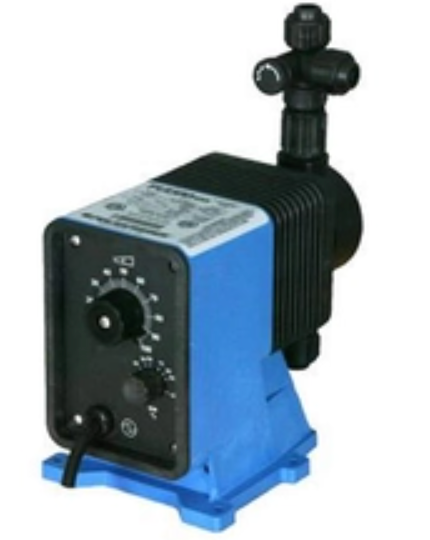

- Model Number: LB02SB-PTCJ-XXX
- Product Series: PULSAtron Series A Plus
- Manufacturer: Pulsafeeder
- Pump Type: Solenoid Diaphragm Metering Pump
Performance Ratings
- Maximum Flow Rate: 0.25 Gallons per Hour (GPH) / 6 Gallons per Day (GPD) / 0.9 Liters per Hour (LPH)
- Maximum Pressure: 150 Pounds per Square Inch (PSI) / 10 Bar
- Maximum Stroke Speed: 125 Strokes per Minute (SPM)
- Turn Down Ratio: 100:1
Electrical Specifications
- Voltage Input: 230 Volts AC
- Frequency: 50/60 Hertz
- Phase: Single Phase
Liquid End Materials
- Pump Head: Glass-Filled Polypropylene (GFPPL)
- Valve Seats: PTFE (Teflon)
- Valve Balls: Ceramic
- Diaphragm: PTFE-faced CSPE (Hypalon-backed)
- Tubing Connections: Standard 1/4-inch Inside Diameter x 3/8-inch Outside Diameter tubing
Control & Features
- Control Method: Dual Manual Control (Independent adjustment knobs for stroke length and stroke frequency)
- Configuration Code (XXX): Standard commercial specifications without custom modifications
